Proto Shield for Arduino UNO
Product Code: 480029

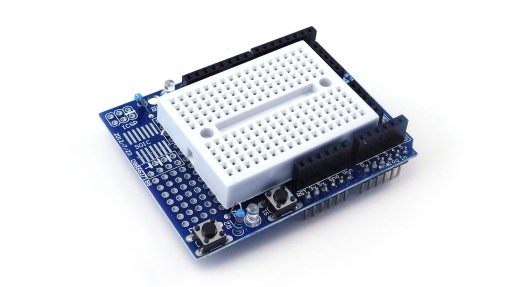

Description Proto Shield for Arduino UNO The Uno Proto Shield and SYB-170 Breadboard mounts on top of an Arduino Uno or compatibles with the same header pinout and provides both a solder type prototyping surface as well as an SYB-170 solderless breadboard that can be temporarily or permanently mounted to the shield. PACKAGE INCLUDES: Uno Proto Shield SYB-170 Breadboard that can be adhered to the top of the shield or not depending on planned use KEY FEATURES OF UNO PROTO SHIELD: The shield brings all Uno I/O up to the top of the board and provides a remote reset button. There is also a general purpose pushbutton which provides a ground contact when pressed as well as 2 general purpose LEDs with resistors which are active high. There is an SOIC-14 solder footprint which is brought out to two header locations. The shield also has a spot to add an ICSP header if desired. The prototyping board has both GND and 5V solder type buses as well as 2 female header buses that are also connected to GND and 5V. There are 2 locations provided on the board to add bypass capacitors across the 5V / GND rails if desired. ARDUINO UNO PROTOSHIELD WITH BREADBOARD – TECHNICAL SPECIFICATIONS: LED Indicators – 2 Onboard Buttons – 2 (1 x Reset / 1 x General Purpose) Breadboard Tie Points – 170 Dimensions (Breadboard) – 44 x 34 x 10mm Dimensions (ProtoShield) – 70 x 55 x 20mm Weight (Breadboard) – 8g Weight (ProtoShield) – 25g
$ 5.29
